Wireless router 4g lte module industrial wifi sim card with openwrt firmware
Simply Introduction:
WD523 is an industrial DTU with 4G function, supports transparent data transmission, access to the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then share the Internet network through wireless WiFi 4 and 100Mbps wired LAN .
Product Feature:
MT7628DA solution, MIPS24KEc architecture CPU, the main frequency is up to 580MHZ
MT7628DA chip integrates 2.4G WIFI function, the rate is up to 300Mbps
MT7628DA chip integrates 64MB DDR2, with 8MB Nor Flash
1WAN, 1LAN full 100M adaptive network ports, support auto flip (Auto MDI/MDIX)
one RS232
one RS485
9-32V power supply
Support "one-key flashing mode", that is, long press the reset button to turn on the machine to enter the rescue flashing mode
Built-in mini-PCIE standard interface, which can be used to connect 4G mobile communication module
External standard SIM card interface, support SIM/USIM card
Supports hardware watchdog function, the device will automatically restart when the routing system or 4G module fails
Hardware Specs:

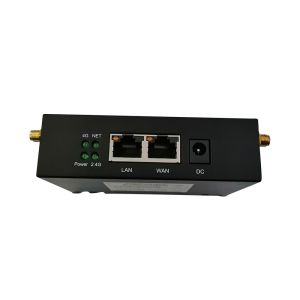

| Network ports | 1 100Mbps WAN port |
| 1 100Mbps LAN port |
| SIM card slot | 1 standard SIM card (large card) interface, support SIM/USIM |
| Power port | DC5.0*2.1MM |
| Button | 1* reset button |
| Antenna | 2 external 2.4G antennas |
| 2 external 4G mobile communication antennas, compatible with 3G/2G mobile data communication |
| Connector | 6 PIN connector, this connector is RS232 and RS485 communication interface |
Product Details:
Company Profile:
Shenzhen Zhibotong Electronics Co., Ltd. was located in Longhua District, Shenzhen,China.
We are a professional network devices since 2010, we have around 500 staffs, with 50-person R & D team,and over 10,000 Square meters production center.
Our main products including openWRT Wi-Fi router, 4G/5G routers, Vehicles router, AP, CPE,etc.
All of our products are designed and produced by us,
with appearance patent and software patent. Our R&D team have rich experience , so OEM/ODM service is available.
FAQ:
1. Can you printing Customer logo on products?
Yes, we can printing your logo on products.
2. Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3. Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.
4. Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
