Mesh wireless Router 1200Mbps dual band Gigabit RTL8197FS-VE5 chipset smart home

Product Categories

Shenzhen Zhibotong Electronics Co., Ltd.

Contact Now

Mesh wireless Router 1200Mbps dual band Gigabit RTL8197FS-VE5 chipset smart home

Brand Name : OEM

Model Number : ZBT-L6

Certification : CE,FCC,ROHS

Place of Origin : China

MOQ : 3pcs

Price : negotiable

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 10000pcs

Delivery Time : For samples 5-7days；for bulk order 25-30days

Packaging Details : 20pcs/Carton

Chipset : RTL8197FS-VE5

Interface : 1 LAN /1 WAN

Frequency bands : 2.4G&5.8G

Flash : Flash

RAM : 128MB

Color : white

Warranty : 1 year

Product name : ZBT-L6

Contact Now

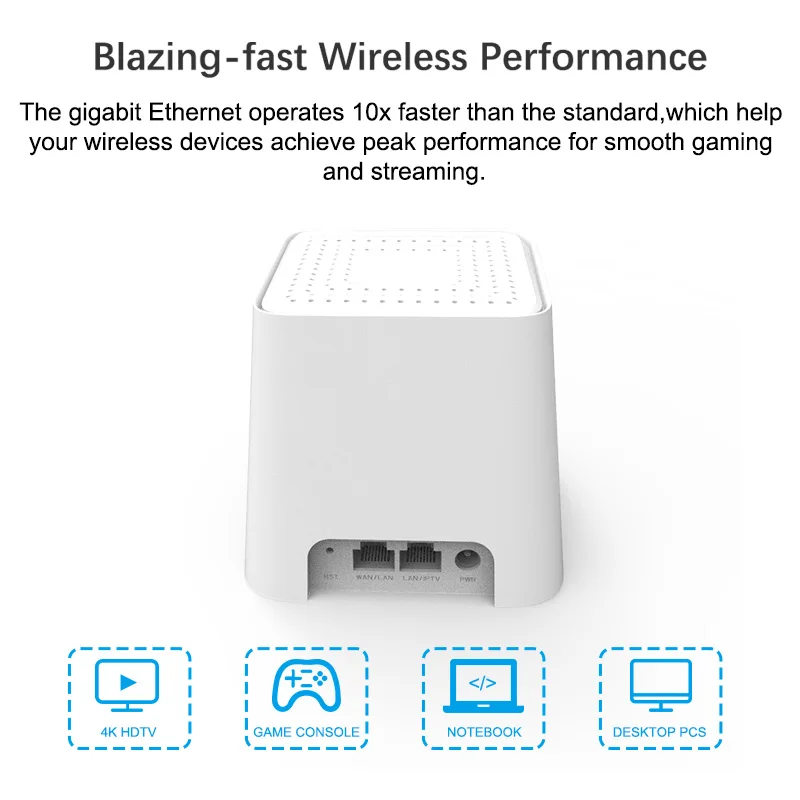

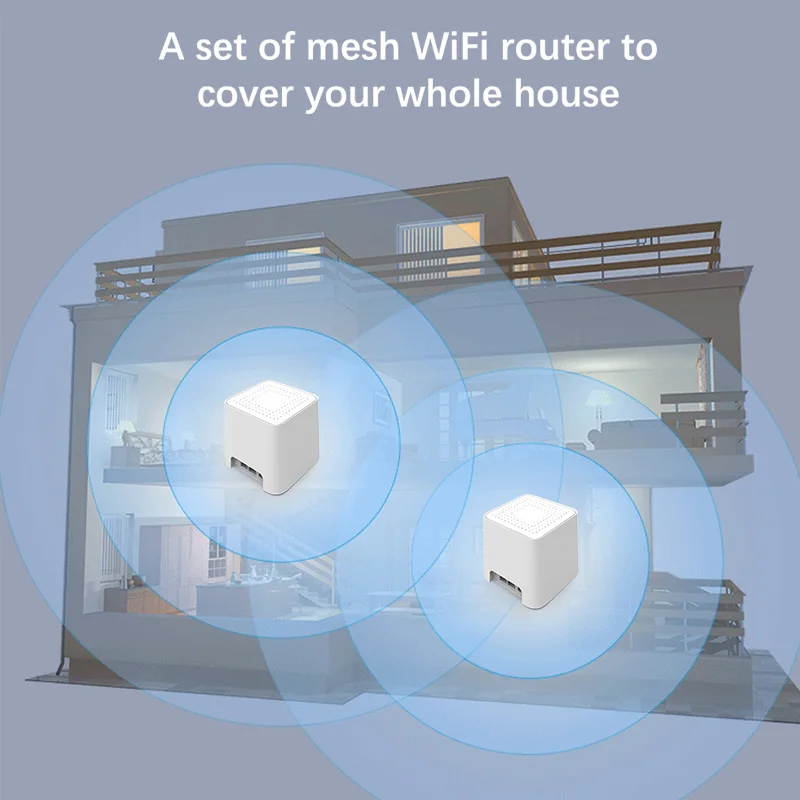

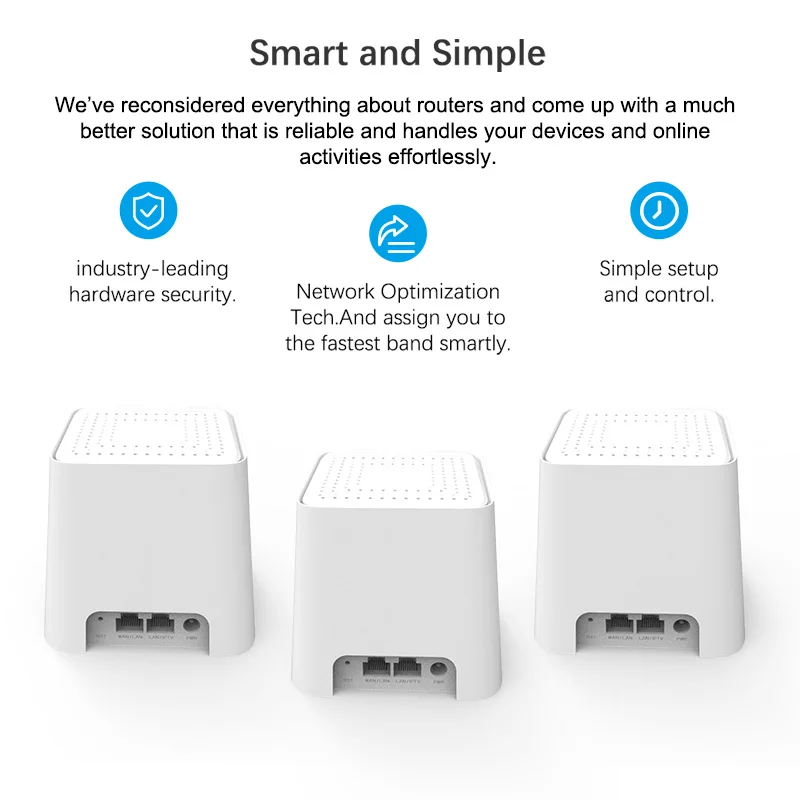

MESH routing system ZBT-L6 is a Gigabit dual-band home wireless networking set. Each node has a 10/100/1000Mbps WAN/LAN adaptive port, a 10/100/1000Mbps adaptive LAN port, and a wireless transmission rate of 1167Mbps.

Product Name		Gigabit Ethernet Port Mesh Router	Remark
Product Type		LAN uplink (compatible with WIFI uplink) device
Model		ZBT-L6
WAN		1*10/100/1000M Auto MDI/MDIX WAN /LAN Port
LAN		1*10/100/1000M Auto MDI/MDIX LAN Port
WLAN		2.4G 300Mbps,5G 867Mbps
Hardware	Main Chipset	RTL8197FS-VE5
	Main Frequency	1GHz
	FLASH	16MByte	SOP8
	RAM	128MByte
	Adapter	12V1A
	LED	1*Integrated indicator	(Red,Green, Yellow)
	Button	Reset
	Antenna	2*3dBi internal dualband antennas
	Wireless Rate	1167Mbps
	Wireless Protocol	802.11b/g/n 2.4GHz; 802.11ac/a/n 5GHz.
	Wired Protocol	802.3；802.3u
	MESH networking standard	802.11s
	Roaming standard	802.11v/r

Mesh wireless Router 1200Mbps dual band Gigabit RTL8197FS-VE5 chipset smart home
